StormChamber^®

StormChamber^® storm water chambers are less expensive, quicker and easier to install than other types of underground storm water chamber systems.  The side-portal feed provides greater flexibility in engineering and hydraulic design, eliminating circuitous routing of feed pipes from inlet structures to entry point of a header pipe.

Product Benefits

StormChamber^® was designed as an open bottom, high-density polyethylene infiltration chamber BMP which functions in both permeable and non-permeable soils for subsurface retention or detention of storm water runoff and for a water quality BMP. It reduces nutrient and other pollutant loadings by taking advantage of the natural biological and physical properties of the soil, directly comparable to the functions of a septic drain field. It also recharges ground water drinking supplies, while concurrently helping to maintain base flow to streams, wetlands, lakes, and ponds, and counter salt-water intrusion.

The StormChamber^® storm water management system provides an environmentally progressive and technologically advanced storage and pollutant removal solution that is more cost-effective and requires less maintenance than other types of underground storm water management systems.

StormChamber^® was developed by biologists, ecologists, and engineers to improve upon older plastic storm water chambers that have been used in the marketplace for over 10 years. StormChamber^® utilizes the same basic corrugated arch shape for structural integrity and exceeds the AASHTO H20 wheel load rating by three times. StormChamber^® significantly exceeds the storage capacity of existing plastic chambers by over 40%, resulting in a need for fewer chambers, less stone, less filter fabric, less excavation, and approximately 50% less time to install. The side portal feeds eliminate the need for expensive header pipe systems currently used to manifold storm water effluent into rows of chamber systems.

The open bottom of the StormChamber^® provides maximum infiltrative surface area, unlike the holes of a perforated pipe that easily become clogged. The open infiltration surface area functions similar to a septic drain field for nitrogen, phosphorous and other pollutant degradation with formation of a bio-mat of micro-organisms upon the underlying stone and soil. The infiltration of storm water also helps to replicate pre-construction hydrology as it recharges groundwater supplies, maintaining base flow to streams and wetlands and in coastal areas, helping to retard salt water intrusion.

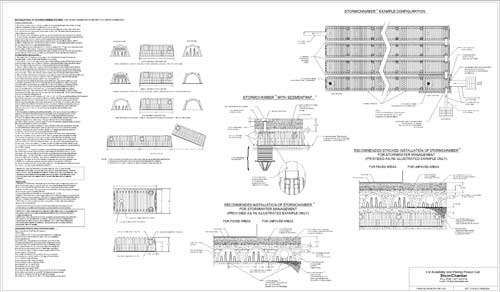

StormChamber^® Detail Sheet (click to enlarge)

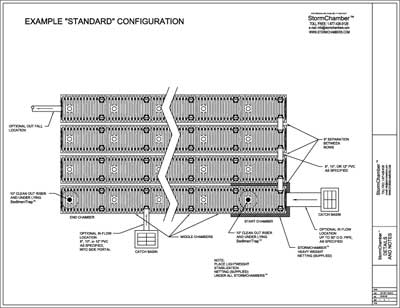

StormChamber^® Example Configuration (click to enlarge)
